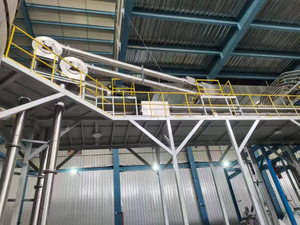

INTRODUCTION TO TCA-TUBE CHAIN CONVEYOR
Tube Chain conveyors is a new type of continuous mechanical conveyor,it is suitable for transportation of bulk solid material Bulk solid material is conveyed in the tube by disks fixed on the chain in a definite distance.Compared with traditional mechanical conveyors such as screw conveyors,belt conveyors,TCC with advantage of lower power consumption,high efficiency,three dimension orientation ect.

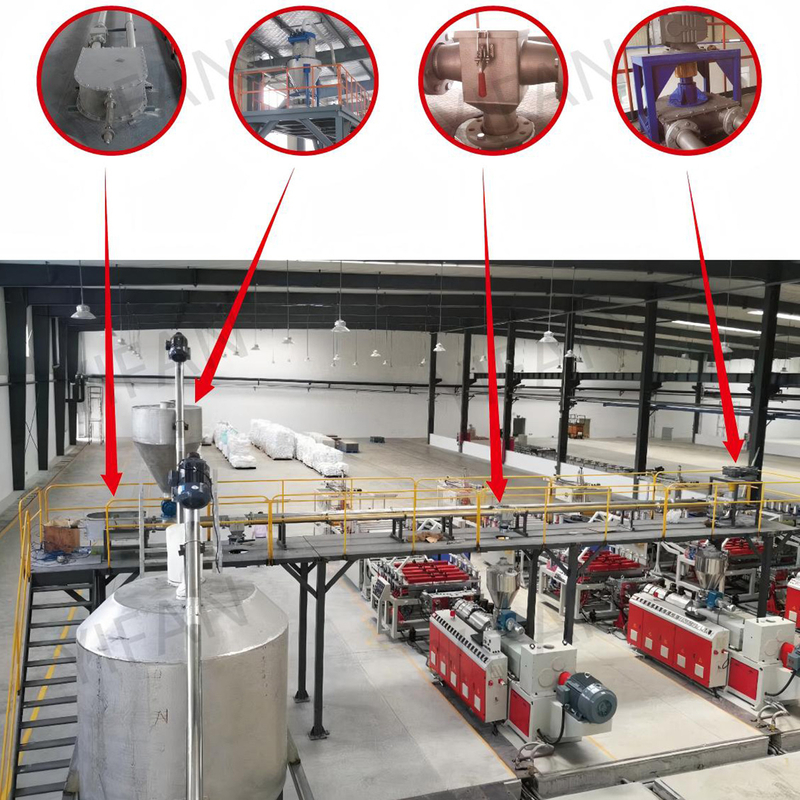

Application fields of tube chain conveying system:
Plastic Industry: PVC、PP、PE Powder,ABS、PC、PP、PE Granulate.
Industry of Chemicals: Dye,paints,coating,carbon black,titanium pigment,ferric oxide,ceramics powder,coarse whiting,fine particle calcium carbonate,bentonite,molecular sieve,kaolin,silica flower,active carbon and etc.
Mineral industry: Urea,ammonium chloride,ammonium bicarbonate,soda power,solid pesticide,tungsten powder,fish oil,copper fine ore powder,coal powder,rock phosphate,alumina powder and etc.
Building Material: Cement,clay,yellow sand,quartz sand,clay powder,silica,limestone flour,dolomite fines,Wood chips,fiberglass,silicon dioxide,French chalk and etc.
Features:
Compact size,small space required,could change conveying direction at horizontal,vertical and inclined orientation.
Dust,gas and pressure-tightness is easy to realize,Therefore no product contamination and dust free operation is possible.
Smooth moving,lower internal faction of particles,lower damage to material and suitable for abrasive material.
No tube blocking happens,large range material are suitable.
No segregation happens for mixed material.
High capacity and lower power consumption makes a lower operation cost.
Al moving parts working in tube,high safety and high reliability.
Easily for long distance transportation.
Multiple material inlet and outlet is possible to meet different process.
Easy to be integrated to an industrial plant for automatic working.
Working Condition
Pressure:1Mpa Absolute
Temperature:-20℃ to 200℃
Materials
Tube、housing、Chain、Sprocket:SS304
Disk:Nylon
(no material contact)：Carbon steel painted
Main Technical Parameter:
Type | Motor Power(kw) | Pipe Size | Speed(r/min) | Capacity(m³/h) |
TCA-80 | 0.37-3 | DN80 | 6-30 | 0.3-5 |
TCA-100 | 0.4-4 | DN100 | 6-30 | 0.45-8 |
TCA-125 | 0.55-5.5 | DN125 | 6-25 | 3-19 |
TCA-150 | 2-7.5 | DN150 | 8-20 | 5-27 |
