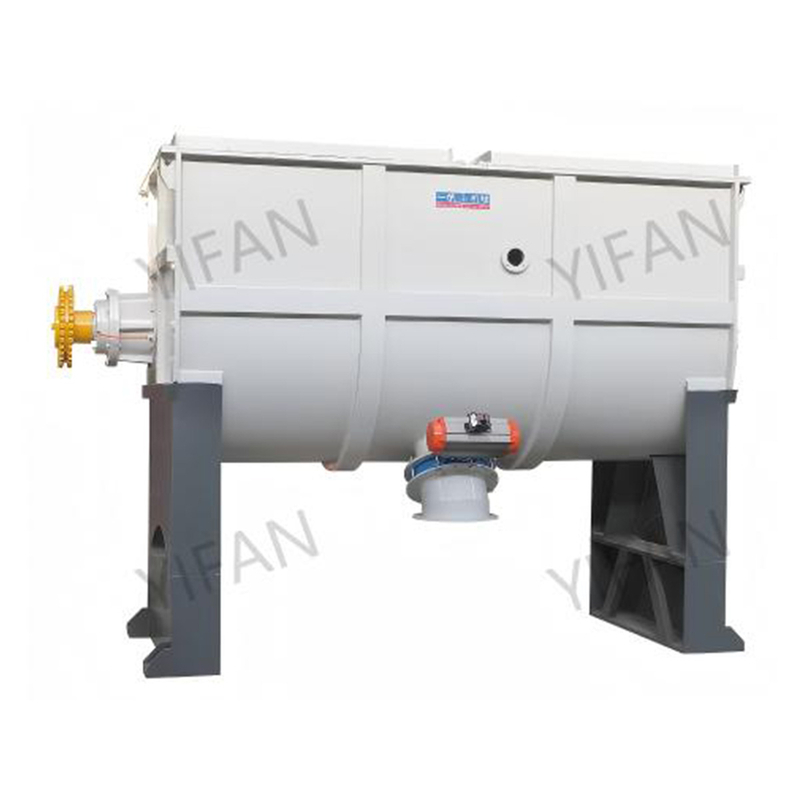

Introduction to horizontal double ribbon mixer
The horizontal double screw belt mixer is a mixing equipment equipped with double ribbon agitator blades, widely used in industries such as plastics, building materials, and chemical engineering.
Applications
Suitable for plastic,chemical and rubber industries.It is often used for uniform mixing of powder or granules with various additives to ensure that the material has stable performance and excellent processing characteristics in the subsequent production process.
In addition, the equipment also has the function of mixing powder with a small amount of liquid additives, which can achieve uniform distribution while keeping the material dry, ensuring that the additives are fully mixed.
Typical applications include dry mixing in the PVC industry, which is used to mix PVC resin with additives such as plasticizers and stabilizers; premixing of compounds and fillers in the chemical and rubber industries.
In addition, the equipment can also be used as a cooling device for bulk solid materials, effectively controlling the material temperature, preventing physical property changes caused by high temperature or degradation of heat-sensitive materials, thereby ensuring the quality stability of the final product, and is suitable for the processing of temperature-sensitive plastics, rubber and chemical materials.
Features

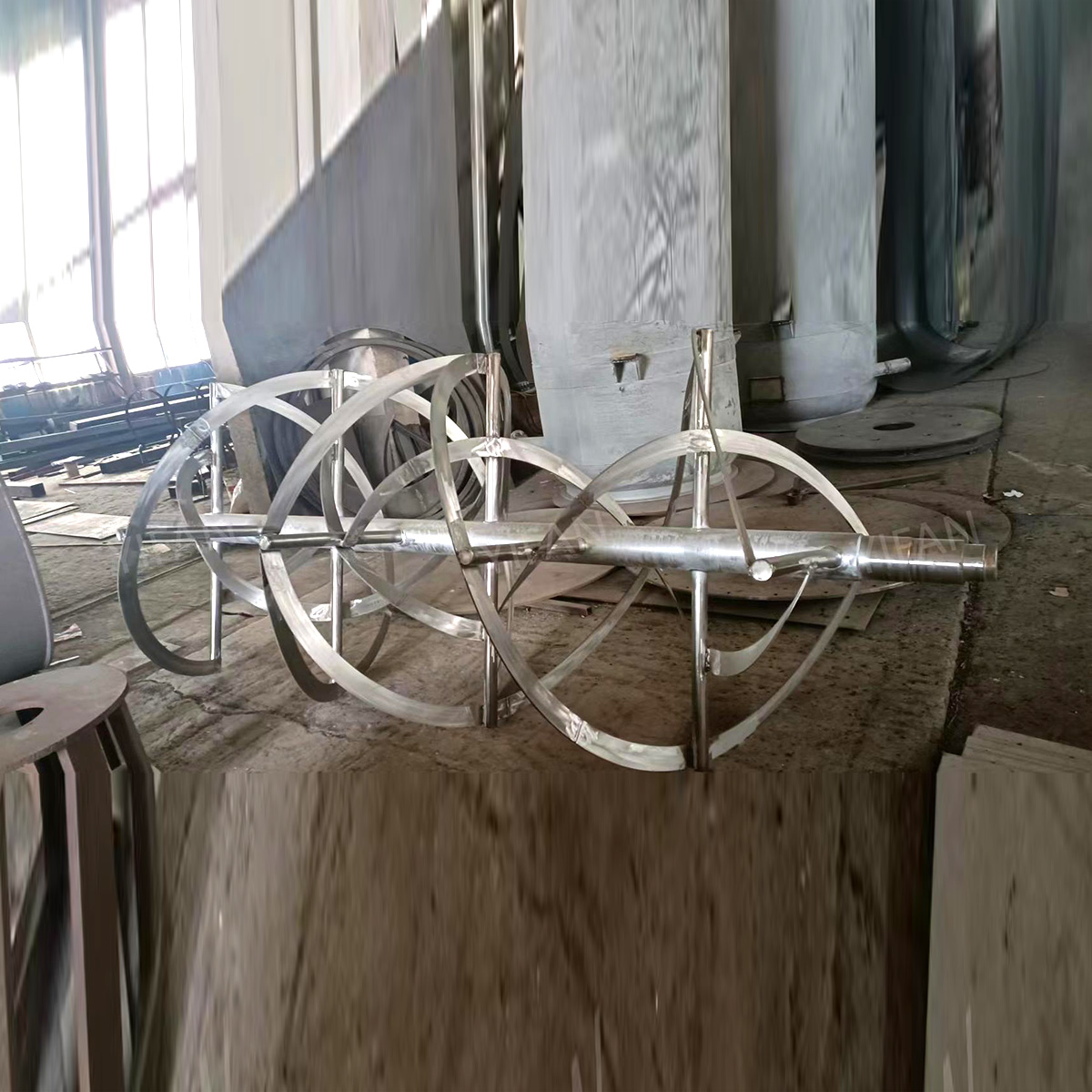

The uniquely designed double-ribbon agitator can achieve efficient and uniform mixing and distribution. Low-speed mixing can reduce heat accumulation, which is particularly suitable for processes such as initial mixing, secondary mixing and coloring. The fully open top cover design facilitates thorough cleaning of the inside of the agitator; the air-blown bearing seal effectively prevents powder from entering the bearing, ensuring stable and durable operation of the equipment.
Main technical parameter
Type | Working capality(M³) | maximum capality(kg) | speed(rpm) | power(KW) | weight(kg) |
WHS1000 | 0.6 | 600 | 49 | 11 | 1600 |
WHS1500 | 0.9 | 900 | 47 | 15 | 1800 |
WHS2000 | 1.2 | 1200 | 33 | 15 | 2500 |
WHS3000 | 1.8 | 1800 | 33 | 18.5 | 3400 |
WHS4000 | 2.4 | 2500 | 27 | 22 | 4000 |
WHS5000 | 3 | 3000 | 27 | 30 | 4680 |
