Decentralized material handling drains factory resources. Manual pellet transport relies heavily on labor, introduces high contamination rates, and causes inconsistent throughput. Modern high-volume plastic manufacturing demands strict baseline efficiency. Plant managers face severe bottlenecks when scaling production. Poorly planned material routing causes significant pressure drops. It leads to material degradation, creating dust and angel hair. Facility space constraints further complicate manual operations. Overcoming these challenges requires a fundamental structural shift. The success of any automated material handling relies entirely on its engineering design. A precise centralized feeding system layout forms the foundation of operational efficiency. We will explore how to evaluate and plan a facility-specific architecture. You will learn how to optimize spatial planning, select the right components, and mitigate implementation risks.
Layout Dictates Performance: A precise centralized feeding system layout minimizes conveying distance and pipe bends, directly reducing energy consumption and preventing material degradation.
Process-Specific Architecture: Injection molding, extrusion, and blow molding require distinctly different manifold and routing strategies to accommodate varying throughputs and color-change frequencies.
Scalability is Engineered, Not Added: Effective layouts incorporate capped expansion points and modular vacuum stations to accommodate future machine additions without requiring a complete system overhaul.
Automation and Turn-Key Integration: Modern layouts must account for Industry 4.0 connectivity, seamlessly interfacing with downstream robotics and whole-factory automation.
Risk Mitigation is Structural: Proper placement of dust collectors, dehumidifying dryers, and static-elimination nodes at the layout stage prevents the most common operational failures in pneumatic conveying.
Table of Contents
A successful centralized feeding system depends on efficient layout planning. Proper pipeline routing ensures stable material delivery, prevents cross-contamination, reduces floor space requirements, and minimizes energy consumption. Poor layouts increase vacuum demand, raise operating costs, and accelerate equipment wear.
Pipe length, vertical lifts, and elbow quantity directly affect conveying performance. Each bend and elevation change increases pressure loss and reduces material flow efficiency. A streamlined pipeline design with optimized blower sizing improves conveying stability while reducing energy usage.
Pipeline design also affects pellet integrity. Excessive velocity and sharp bends create impact forces that generate dust, angel hair, and material degradation. Using smooth-radius bends and correct pipe diameters reduces friction, maintains pellet quality, and lowers scrap rates.

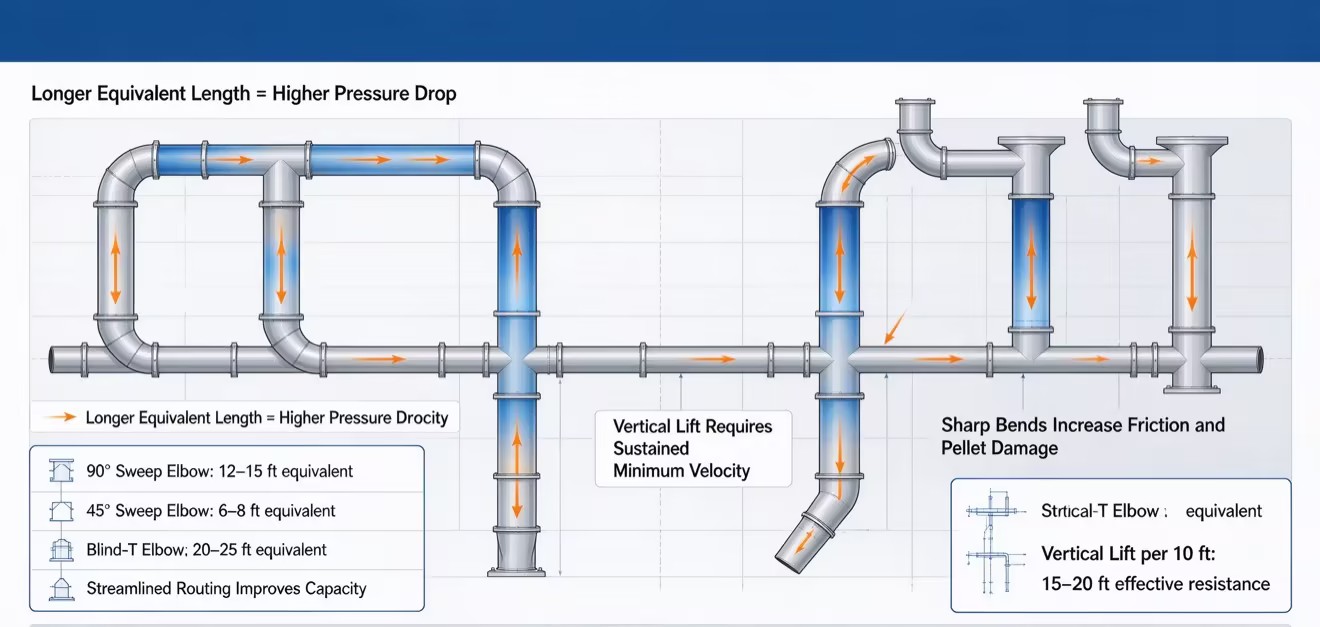

Fitting Type |
Equivalent Straight Pipe Length (2-inch OD) |
Impact on Material Velocity |
|---|---|---|
90-Degree Standard Sweep Elbow |
12 to 15 feet |
Moderate velocity drop; potential for angel hair if speed is too high. |
45-Degree Sweep Elbow |
6 to 8 feet |
Low velocity drop; preferred for gentle directional changes. |
Blind-T (Pocket) Elbow |
20 to 25 feet |
High velocity drop; requires higher vacuum pressure but prevents abrasive wear. |
Vertical Lift (per 10 feet) |
15 to 20 feet (effective resistance) |
Requires sustained minimum velocity to prevent pellet fallback and line plugging. |
Efficient material handling starts with well-designed intake and storage areas. Truck access, unloading routes, and silo placement must minimize bottlenecks and reduce conveying distance. Outdoor silos save floor space, while indoor storage provides better environmental control for sensitive materials.
The pump room is the core of the conveying system. Vacuum pumps require dedicated space with proper ventilation, noise control, and maintenance clearance. Good layout planning prevents overheating, reduces downtime, and improves equipment serviceability.
Manifold location directly affects material switching efficiency. Centralized manifolds simplify management and reduce contamination risks, while decentralized layouts shorten piping distances for machine groups. The optimal design depends on production flexibility and resin change frequency.
Drying systems must be positioned close to processing machines to maintain resin quality. Hygroscopic materials require controlled moisture levels, and closed-loop dry air conveying prevents moisture regain during transport. Proper placement reduces defects such as splay and brittleness.
Injection molding plants require flexible routing for frequent material and color changes. Automated coupling stations, short conveying paths, and RFID verification improve changeover speed while preventing material contamination.
Continuous processes require high-capacity and highly reliable conveying systems. Straight pipeline routes, minimal bends, and redundant vacuum equipment ensure uninterrupted resin supply and prevent production losses.
Medical applications prioritize cleanliness and compliance. Closed-loop conveying systems, stainless steel piping, polished internal surfaces, and HEPA-filtered exhaust help maintain strict contamination control and ISO cleanroom requirements.
Manufacturing Process |
Primary Requirement |
Layout Approach |
Piping Material Focus |
|---|---|---|---|
Injection Molding |
High flexibility, frequent color changes |
Automated coupling, short secondary routing |
Aluminum / Stainless Steel |
Extrusion & Blow Molding |
High-volume, uninterrupted throughput |
Direct heavy-duty routing, redundant vacuum |
Heavy-wall Aluminum / Steel |
Cleanroom & Medical |
ISO compliance, zero particulates |
Closed-loop, HEPA-filtered exhaust |
Polished 304/316L Stainless |
Pipeline length and vertical lifts directly affect vacuum requirements. Engineers must calculate pressure losses to avoid undersized vacuum systems and material blockages. When conveying distances exceed system capacity, larger blowers or booster stations may be required.
Correct pipe sizing maintains stable pellet movement. Oversized pipes reduce air velocity and risk material settling, while undersized pipes increase impact damage and generate dust. VFD-controlled vacuum pumps help adjust airflow for different conveying conditions.
Pipeline bends must match material characteristics. Standard elbows suit common resins, while abrasive materials require wear-resistant solutions such as glass-backed or blind-T elbows. Proper elbow selection reduces maintenance frequency and extends pipeline life.
Retrofit projects require careful coordination with existing HVAC, cranes, and utilities. 3D scanning and proper support structures prevent installation conflicts. Modern systems also integrate IoT sensors, robotics, and automation networks for real-time monitoring and predictive maintenance.
Single-vendor systems provide better integration, software compatibility, and technical support. Multi-vendor solutions may reduce initial costs but often create challenges in commissioning, communication, and troubleshooting.
Central vacuum systems offer better energy efficiency and simpler maintenance but create a single failure point. Decentralized blowers improve redundancy but increase equipment quantity, maintenance needs, and energy consumption.
Aluminum piping provides a cost-effective solution for standard applications, while stainless steel offers superior durability for abrasive materials. The correct choice depends on material properties and long-term operating costs.
Automated RFID-based manifolds require higher upfront investment but reduce material mix-ups and production losses. Manual systems are cheaper initially but carry greater risks of contamination, downtime, and scrap generation.
Do: Prioritize straight pipe runs to maintain optimal pellet velocity and reduce energy consumption.
Do: Utilize comprehensive 3D facility mapping before finalizing any overhead routing paths to avoid structural clashes.
Do: Account for future capacity by capping expansion nodes at strategic manifold junctions.
Do: Install acoustic enclosures around vacuum pumps to protect worker hearing and meet safety regulations.
Do: Use variable frequency drives (VFDs) on blowers to adapt to changing throughput demands and save electricity.
Don't: Underestimate the floor space required for safe maintenance access around vacuum pumps and manifolds.
Don't: Mix incompatible pipe materials, which can cause galvanic corrosion and contamination.
Don't: Use standard elbows for abrasive resins; this leads to premature system failure and blowouts.
Don't: Place dehumidifying dryers far away from processing machines, risking moisture regain during transport.
Don't: Ignore static grounding protocols, as this leads to dangerous electrical buildup and material clogs.
A highly efficient material handling network is a highly customized infrastructure project. The physical layout determines your long-term return on investment and operational precision. Poor spatial planning guarantees high energy bills and constant maintenance. Strategic engineering ensures materials flow seamlessly from silo to screw. Decision-makers must prioritize vendors who offer turn-key solutions. Demand transparent pressure-drop calculations before signing any contracts. Ensure your chosen partner has verifiable experience in your specific plastic sub-sector.
Take the following actionable steps to begin your facility upgrade:
Initiate a formal site audit to capture exact facility dimensions and structural constraints.
Document all current throughput bottlenecks and track historical material waste data.
Define your future expansion goals, including planned machine additions over the next five years.
Request comprehensive 3D layout proposals from shortlisted engineering vendors.
Verify that all proposed pipeline materials match the abrasion levels of your specific resin catalog.
A: Floor space depends on the number of blowers and filtration units. A standard two-pump system requires approximately 150 to 200 square feet. You must include at least three feet of clearance around each machine for safe maintenance access, filter changes, and proper heat dissipation.
A: Yes, modifications are possible if the initial layout includes capped expansion nodes. Adding new machines requires connecting to these pre-planned junctions. However, you must verify that your central vacuum pump has the reserve capacity to handle the increased distance and throughput.
A: Pipeline layout dictates friction and pressure drop. Every elbow and vertical lift slows the air velocity. Excessive bends force the vacuum pump to work harder, reducing the overall volume of material it can pull. Straight, direct routes maximize conveying capacity and reduce energy consumption.
A: Standard dilute-phase vacuum systems can convey materials up to 300 feet horizontally. Dense-phase systems or those utilizing booster pumps can push materials much further, sometimes exceeding 1,000 feet. The exact limit depends on resin weight, pipe diameter, and blower horsepower.
A: Cross-contamination is prevented through centralized manifold stations equipped with RFID tracking. Operators must scan the material line before connection. The PLC will not open the vacuum valve if the wrong material is selected. Automated purge cycles also clean the lines between changes.
A: Abrasive plastics require heavy-wall stainless steel piping. The layout must utilize specialized blind-T elbows or glass-backed bends instead of standard sweeping elbows. Air velocity must be strictly controlled via VFDs to prevent pellets from sandblasting the interior pipe walls.
A: Turn-key systems provide guaranteed operational reliability and seamless software integration. A single vendor handles engineering, installation, and PLC programming. This eliminates communication errors between mismatched equipment and provides a single point of accountability for maintenance and troubleshooting.
