As manufacturing facilities scale, relying on individual hopper loaders becomes a logistical and maintenance liability, driving the shift toward centralized material handling. Plant managers and process engineers frequently ask for a flat number of machines a system can support. However, miscalculating system capabilities based solely on "machine count" rather than engineering variables leads to material starvation, pump burnout, or excessive capital expenditure on oversized equipment.
Determining true capacity requires shifting the evaluation from a simple machine headcount to a holistic calculation of total material throughput, conveying distance, material characteristics, vacuum pump sizing, and control system limits. This guide breaks down the engineering realities of sizing a Centralized Feeding System for your specific production floor.
Throughput Over Headcount: A centralized feeding system does not have a strict machine limit; capacity is dictated by the total pounds-per-hour (lbs/hr) or kilograms-per-hour (kg/hr) required across all active nodes.
Distance is a Limiting Factor: Equivalent pipe length, including vertical lifts and elbows, directly impacts pressure drop and reduces the effective capacity of the vacuum pumps.
Material Characteristics Matter: Bulk density, particle shape, and flowability dictate line sizing and conveying velocities, heavily influencing how many receivers can be fed simultaneously.
Control Systems Dictate Traffic: Even with massive vacuum power, the physical I/O limits and sequencing algorithms of your PLC will ultimately cap your centralized feeding system machine capacity.
Scalability Requires Upfront Planning: Designing a system with modular pump stations, variable frequency drives (VFDs), and oversized main trunk lines prevents costly retrofits when adding future injection molding or extrusion machines.
Table of Contents
The number of connected machines is not a reliable indicator of centralized feeding system capacity. A system serving dozens of small medical molding machines may require less vacuum power than one supplying a few large automotive presses. Capacity depends on material consumption, shot size, cycle speed, and conveying demand—not the number of machines connected.
A proper capacity assessment should focus on total material throughput, vacuum performance, and conveying cycle time. A single vacuum pump may support many low-consumption machines but fail when the same machines demand higher material volumes. Insufficient capacity leads to hopper starvation, unstable production, and unexpected downtime.
Pneumatic conveying capacity depends on the relationship between airflow, material weight, conveying distance, and transport time. Engineers must calculate the total plant material demand and compare it with the limitations of the vacuum system, pipeline design, and operating conditions to avoid undersizing during facility planning.
System capacity starts with accurate peak material demand calculations. Engineers determine the maximum shot weight or extrusion rate for each machine, calculate hourly consumption based on cycle speed, and combine the total demand across the conveying network. A 20%–30% safety margin is added to handle simultaneous material requests and prevent downstream machines from starving during peak production.
Conveying performance decreases as distance and routing complexity increase. Engineers must evaluate the true system resistance using equivalent length, which includes horizontal runs, vertical lifts, elbows, and valves. A short pipeline with many bends may require more vacuum power than a longer, straight route, making optimized routing essential for maintaining capacity and energy efficiency.
Piping Component | Equivalent Straight Pipe Length (Approximate) | Impact on Vacuum System |
|---|---|---|
Standard 90-Degree Elbow (Short Radius) | 15 to 20 feet | High friction, high pressure drop, increased risk of material degradation. |
Long Radius 90-Degree Sweep | 7 to 10 feet | Smoother material transition, lower pressure drop, preserves pump capacity. |
45-Degree Elbow | 5 to 8 feet | Moderate pressure drop, useful for gradual elevation changes. |
Flexible Hose (per 10 feet) | 30 to 40 feet | Extreme friction due to corrugated interior. Severely limits conveying distance. |
The physical properties of the resin alter the required air-to-material ratio. Heavy, dense materials like glass-filled nylon require higher air velocities to stay suspended in the conveying line compared to lightweight, virgin polypropylene pellets. Bulk density directly dictates how much material can physically fit in the pipe while maintaining flow.
Pellet Shape: Smooth, spherical pellets flow easily and require less vacuum pressure.
Regrind: Irregular shapes and sharp edges increase friction against the pipe walls, slowing down conveying speeds and requiring larger line sizes.
Powders: Require specialized filtration and lower conveying velocities to prevent packing and filter blinding.
Abrasives: Glass-filled or mineral-filled resins require lower conveying speeds to prevent pipe wear, which inherently reduces the total throughput capacity of the line.
Available conveying time is not 60 minutes per hour. After a receiver fills, the central system must often purge the line to prevent material from sitting in the pipe, absorbing moisture, or cross-contaminating the next cycle. The time required to clear the lines eats into the total available conveying time. If a system spends 15 minutes every hour purging lines, it only has 45 minutes of actual conveying time, strictly limiting the number of receivers one pump can service.
The prime mover is the heart of the material handling network. Selecting the wrong type of pump guarantees capacity bottlenecks. The choice generally comes down to regenerative blowers and positive displacement pumps.
Regenerative blowers are highly cost-effective and operate quietly. They are best suited for shorter distances and lower overall throughputs. However, they are limited in their vacuum depth. If a line plugs or if the distance is too great, a regenerative blower lacks the physical torque to pull the material through, causing the system to stall.
Positive Displacement (PD) pumps, often referred to as Roots-type blowers, are mandatory for long distances, heavy throughputs, and high-capacity multi-machine setups. PD pumps generate a deep, consistent vacuum. They can pull heavy materials over hundreds of feet and easily power through minor line restrictions that would choke a regenerative blower.
Pump Type | Max Vacuum Depth (inHg) | Ideal Application | Limitations |
|---|---|---|---|
Regenerative Blower | 7 to 10 inHg | Short runs (under 100 ft), single-machine loading, lightweight resins. | Cannot handle long vertical lifts or heavy bulk density materials. |
Positive Displacement (PD) Pump | 12 to 15+ inHg | Plant-wide systems, long distances (300+ ft), heavy regrind, multi-machine zones. | Higher initial cost, requires noise enclosures and regular oil maintenance. |
Proper sizing requires matching Cubic Feet per Minute (CFM) and inches of mercury (inHg) to the calculated equivalent distance and throughput. CFM determines the speed of the air, which keeps the material suspended. inHg determines the pulling power, which overcomes the friction and weight of the material. A system with high CFM but low inHg will fail on long vertical lifts.
Modern systems utilize Variable Frequency Drives (VFDs) to optimize operations. Integrating VFDs allows a high-capacity system to scale down motor speed when only a few machines are calling for material. This reduces energy consumption and prevents the system from conveying material too fast when demand is low, which can cause material degradation. When demand peaks, the VFD ramps up the pump to full capacity.
Relying on a single massive pump for an entire facility introduces a single point of failure. Designing multi-pump systems with N+1 redundancy ensures continuous operation. If one pump requires maintenance or fails unexpectedly, the standby pump automatically takes over, preserving your production schedule.
The physical layout of the piping and distribution manifolds dictates the overall efficiency of the material handling process. Poor architectural decisions will throttle even the most powerful vacuum pumps.

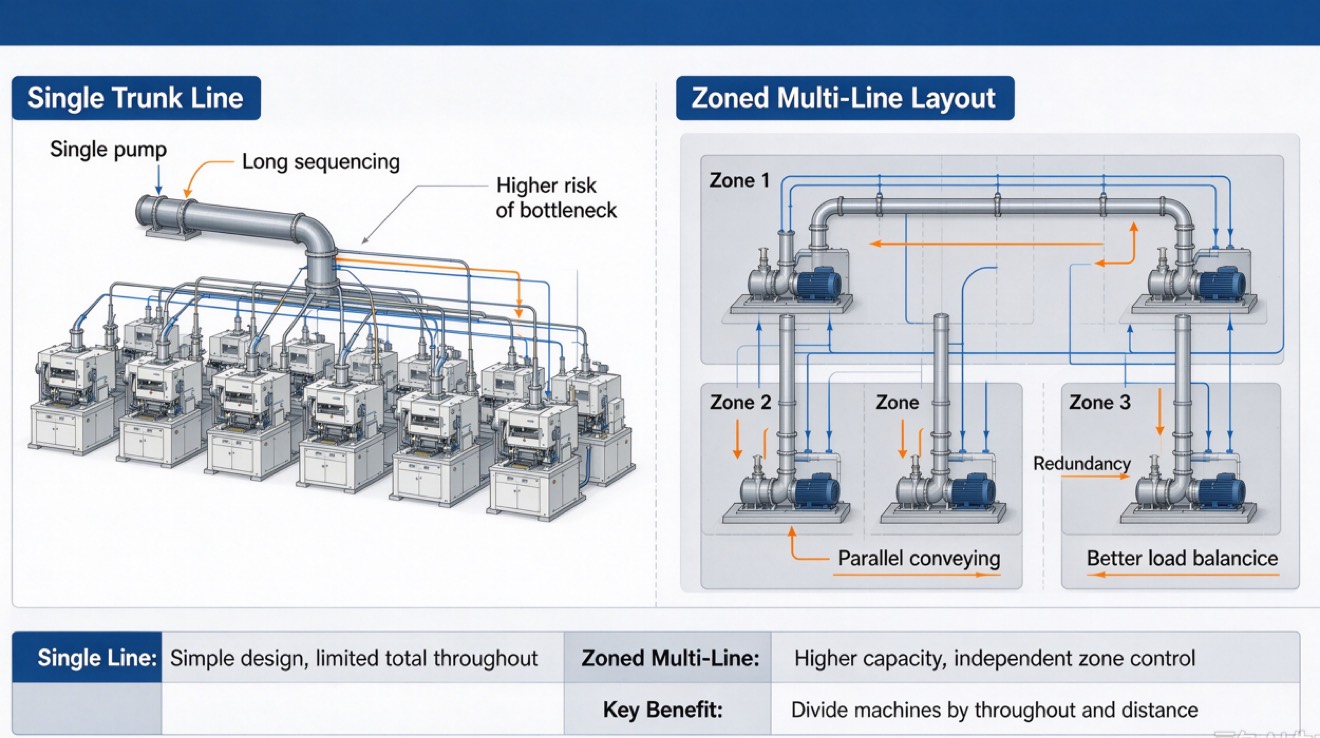

Attempting to run 50 machines off a single massive vacuum pump and a single trunk line is highly inefficient. The system must sequence every single machine one at a time. Dividing a large plant into dedicated zones—such as one pump and one trunk line per 10 to 15 machines—is far more reliable. Zoned configurations allow multiple pumps to convey material simultaneously to different areas of the plant, drastically increasing total facility throughput.
Piping diameter must be carefully calculated. If the pipe is too large, the air velocity drops below the saltation point, causing material to fall out of suspension and plug the line. If the pipe is too small, the material travels too fast. Excessive speed causes friction, leading to material degradation, dust generation, and the creation of "angel hair" (melted resin strings) in the lines.
Routing material from multiple silos to multiple machines requires a distribution hub. The complexity of this hub directly impacts how fast the system can switch between sources and destinations.
Distribution Type | Operational Mechanism | Impact on System Capacity |
|---|---|---|
Manual Coupling Stations | Operators physically move hoses on a manifold board to change material routing. | Slower changeovers; potential for human error; limits dynamic capacity. |
Automated Manifolds | Pneumatic valves automatically open and close pathways based on PLC commands. | Instantaneous changeovers; maximizes conveying time and total capacity. |
Feeding virgin material and regrind simultaneously requires specialized proportioning valves at the machine throat. These valves alternate between the virgin line and the regrind line to create a layered mix in the receiver. This alternating action extends the total fill time for that specific receiver. When fill times increase, the central pump is occupied longer, which reduces the total number of other machines it can service in that same hour.
Installing undersized receivers is a common error that artificially lowers system capacity. If a receiver is too small, it empties quickly. The machine will constantly call for material, forcing the central pump to cycle on and off rapidly. This continuous sequencing creates a traffic jam in the control system. Appropriately oversized receivers hold enough material to allow the central pump to service other machines before returning to refill the first one.
Even with massive vacuum power and perfectly sized piping, the physical I/O limits and sequencing algorithms of your PLC will ultimately cap your centralized feeding system machine capacity. The brain of the operation dictates the speed of traffic.
A Programmable Logic Controller (PLC) has a hard limit on the number of inputs and outputs it can manage. Every receiver, purge valve, proportioning valve, and level sensor requires an I/O point. If your PLC maxes out at 64 I/O points, you cannot physically add a 65th device to the network without upgrading the hardware, regardless of how much vacuum power you have in reserve.
The logic used to answer material requests determines whether machines starve during peak demand.
First-In, First-Out (FIFO): The PLC answers material requests in the exact order they are received. This works well for standard operations with low throughput.
Priority Sequencing: When the system is near maximum capacity, FIFO fails. A high-throughput machine might run out of material while waiting for the pump to fill five smaller machines that called first. Priority sequencing allows engineers to assign hierarchy. The PLC will bypass smaller requests to immediately service a high-priority, high-throughput machine, preventing costly downtime.
Facilities grow. Designing a system that only meets today's requirements guarantees an expensive retrofit tomorrow. Balancing upfront capital expenditure with long-term flexibility is critical.
Installing larger diameter piping on day one is highly cost-effective compared to ripping out and replacing undersized pipe three years later. Even if current demand is low, an oversized main trunk line accommodates future throughput. You can manage the lower initial air velocity by utilizing VFDs on the vacuum pumps, ensuring material stays suspended without degrading.
Select a system architecture that allows for the plug-and-play addition of secondary vacuum pumps. As the machine count grows, you can simply drop another PD pump into the mechanical room, connect it to the manifold, and instantly increase the total facility conveying capacity without disrupting existing production.
Ensure the central control software has the expansion modules necessary to handle additional receivers and purge valves. A scalable PLC architecture allows you to add remote I/O blocks out on the production floor, daisy-chaining new machines into the existing network without requiring a total control system overhaul.
Audit your current and projected material usage by calculating the maximum pounds-per-hour required for every machine on your floor.
Map the physical distances from your material storage silos to the furthest production machine, documenting every elbow, vertical lift, and flexible hose connection.
Consult a pneumatic conveying engineer to size your prime movers based on equivalent pipe length and specific material bulk densities.
Specify a PLC control system equipped with priority sequencing and expandable I/O modules to accommodate future facility expansion.
A: Distance depends heavily on the vacuum pump type and material bulk density. Positive displacement pumps can convey materials well over 500 feet horizontally. However, vertical lifts and pipe elbows significantly reduce this maximum effective distance by increasing pressure drop.
A: Calculate total throughput by multiplying the maximum shot size or extrusion rate of each machine by its cycles per hour. Add the totals for all connected machines, then apply a 20% to 30% safety margin to accommodate simultaneous material requests.
A: Yes, provided the system utilizes an automated distribution manifold. The PLC can route different materials from specific silos to specific machines. However, the line must be completely purged between cycles to prevent cross-contamination of different resins.
A: An undersized system cannot maintain adequate vacuum pressure or airflow. Material will fall out of suspension, plugging the lines. Machines will experience material starvation, leading to short shots, halted production, and excessive wear on the overworked vacuum pump.
A: It depends entirely on total throughput and distance, not the machine count. Twenty small machines might run efficiently on one regenerative blower. Twenty large-tonnage machines might require two or three positive displacement pumps operating in a zoned configuration.
A: Heavier, denser materials require higher air velocities to stay suspended in the pipe. Because dense materials take up more vacuum energy to move, the system can convey fewer total pounds per hour compared to lightweight materials over the exact same distance.
