Translating raw production targets into precise pneumatic conveying requirements is a complex engineering challenge. Plant managers and process engineers must account for pressure drops, material bulk density, dynamic plant layouts, and fluctuating material blends. Inaccurate capacity planning carries severe operational and financial consequences. Undersizing your equipment leads to machine starvation, bottlenecked production, and costly downtime. Conversely, oversizing results in excessive capital expenditure, high energy consumption, and potential material degradation from excessive conveying speeds.
We provide a structured engineering framework for calculating centralized feeding system capacity. This methodology helps you validate vendor proposals, optimize energy usage, and mitigate implementation risks. By moving beyond simple throughput estimates, you can design a material handling architecture that scales efficiently with your production demands.
Accurate capacity calculations require moving beyond basic throughput (kg/hr) to account for material bulk density, particle geometry, conveying distance (equivalent length), and pipe surface friction.
System sizing must accommodate peak demand periods, simultaneous machine loading, and the specific flow dynamics of regrind versus virgin materials.
Pipe diameter, air velocity, and vacuum pump sizing are interdependent; miscalculating one variable exponentially increases the risk of line plugging, material fracturing, or excessive energy waste.
Evaluating a Centralized Feeding System requires assessing a vendor’s scalability allowances, control system logic, simulation capabilities (like CFD), and mitigation strategies for pressure drops across elbows and diverters.
Table of Contents
Material characteristics determine the foundation of pneumatic conveying design. Bulk density affects required pipe size and airflow capacity, while particle shape influences conveying velocity and flow stability. Fragile materials require lower speeds to prevent pellet damage, dust generation, and pipe wear. Proper material analysis ensures the system delivers consistent throughput without compromising product quality.
Material Type | Typical Bulk Density (lb/ft⊃3;) | Flowability Characteristics |
|---|---|---|
Polycarbonate (PC) Pellets | 38 - 42 | Excellent flow, highly uniform, low friction. |
Polypropylene (PP) Regrind | 22 - 28 | Poor flow, jagged edges, prone to interlocking. |
PET Flakes | 15 - 25 | High aerodynamic drag, requires larger pipe diameters. |
PVC Powder | 30 - 35 | Prone to packing and fluidization, requires specialized filtration. |
Regrind content significantly affects conveying performance. Compared with virgin pellets, regrind usually has lower bulk density and irregular particle shapes, increasing friction and the risk of line plugging. System capacity must be calculated based on the most demanding material blend, with flexible airflow control to handle changes in regrind ratios.

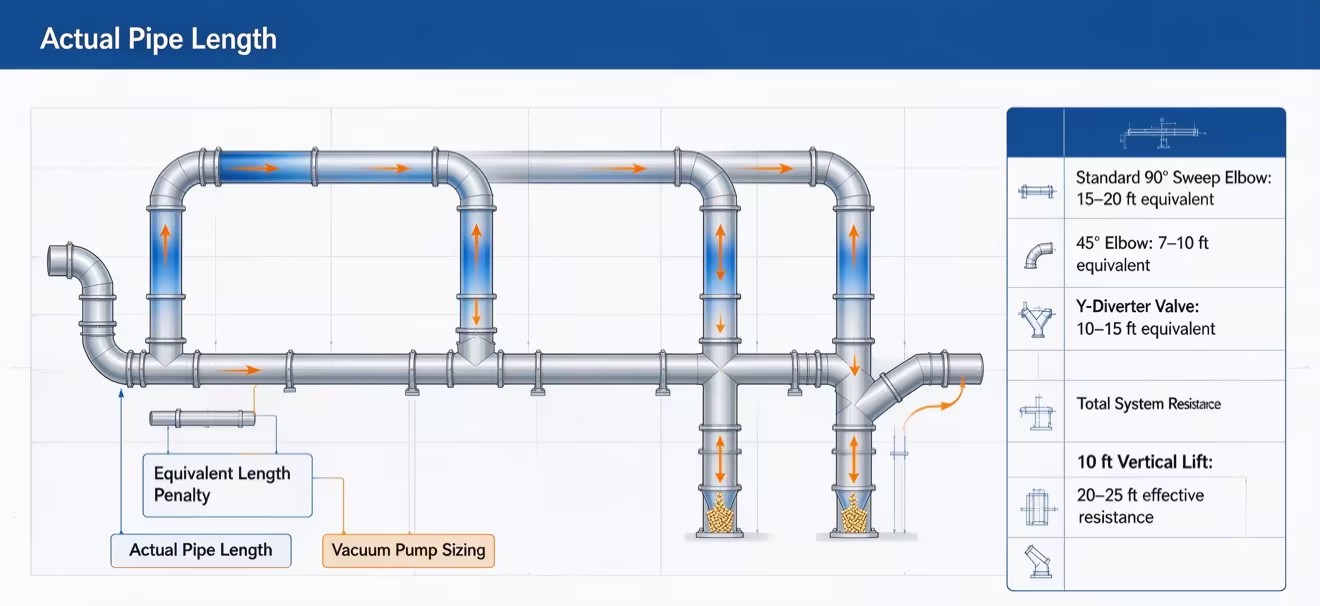

Actual conveying resistance depends on equivalent distance rather than straight-line pipe length. Vertical lifts, bends, elbows, and diverter valves all increase pressure losses and reduce conveying efficiency. Accurate layout mapping and resistance calculations are essential for selecting the correct vacuum capacity and preventing material shortages.
Piping Component | Equivalent Length Penalty (Feet) | Impact on System Pressure Drop |
|---|---|---|
Standard 90-Degree Sweep Elbow | 15 - 20 | High turbulence, significant momentum loss. |
45-Degree Elbow | 7 - 10 | Moderate turbulence, minor momentum loss. |
Y-Diverter Valve | 10 - 15 | Creates flow restriction and boundary layer disruption. |
10-Foot Vertical Lift | 20 - 25 | Requires continuous energy to overcome gravity. |
The physical construction of your piping network influences overall capacity. Different materials possess different friction coefficients. Stainless steel, aluminum, and glass-lined pipes all interact differently with moving plastics. Aluminum is lightweight and easy to install, but it degrades quickly when conveying abrasive glass-filled resins. Stainless steel offers durability but may require specific surface treatments to prevent material smearing.
Internal surface roughness directly impacts pressure drop. Rough pipe walls create micro-turbulence in the boundary layer of the airstream, increasing aerodynamic drag. Over long conveying distances, this accumulated friction reduces the effective capacity of the entire network. Shot-peened or specialized dimpled pipes reduce surface contact area, minimizing friction and preventing angel hair formation when handling specific polymers.
Determine Baseline Throughput: Multiply the number of processing machines by their maximum material consumption rate per hour. If you have 10 injection molding machines each consuming 50 kg/hr, your absolute baseline is 500 kg/hr.
Apply the Peak Demand Factor: Processing machines do not draw material in a perfectly synchronized, continuous stream. They operate in cycles. If multiple large-tonnage machines trigger their vacuum receivers simultaneously, the instantaneous demand spikes. Multiply your baseline by a peak factor (typically 1.3 to 1.5) to accommodate simultaneous loading.
Add a Future Expansion Buffer: Factor in a 15-20% capacity buffer. This safety margin accounts for future plant expansion, the installation of higher-yield tooling, or unexpected shifts in material density. A system running at 100% of its theoretical maximum will fail frequently.
Calculate Saltation Velocity: Determine the minimum air speed required to keep the material particles suspended in the airstream. If the velocity drops below this threshold, material settles on the bottom of the pipe, eventually causing a complete line plug. Saltation velocity depends heavily on particle size, shape, and bulk density.
Select Pipe Diameter: Match the required air volume and saltation velocity to a specific pipe cross-sectional area. Larger pipe diameters offer higher capacity and lower pressure drops, but they require larger vacuum pumps to generate the necessary air volume. Smaller pipes reduce pump requirements but limit future capacity and increase the risk of material damage.
Calculate Total System Pressure Drop (ΔP): Aggregate three distinct resistance factors: material friction against the pipe walls, air friction within the pipe, and the equivalent length resistance of all bends and vertical lifts.
Size the Vacuum Pump: Select a pump capable of overcoming the total pressure drop while maintaining the required airflow (CFM or m³/hr). Choose between positive displacement blowers for long distances and heavy loads, or side channel blowers for shorter runs and lighter materials.
Dilute phase conveying uses high-velocity airflow to suspend and transport plastic pellets through pipelines. It provides high throughput, long-distance conveying capability, and relatively simple system design, making it the most common solution in plastics manufacturing. However, the high conveying speed increases pellet impact, pipe wear, and material degradation risks, especially for fragile or abrasive resins.
Dense phase conveying moves material at lower speeds using high-pressure air to push dense slugs of pellets through the pipeline. This method minimizes pellet damage, reduces pipe wear, and maintains blended material consistency, making it suitable for fragile or abrasive materials. The trade-off is higher system complexity, larger equipment requirements, and lower continuous throughput compared with dilute phase systems.
Altitude, temperature, and humidity directly affect pneumatic conveying performance. High elevations reduce air density, requiring larger airflow capacity from blowers to maintain conveying efficiency. High humidity can reduce material flowability and accelerate filter clogging, increasing pressure losses. System design must consider local environmental conditions when selecting pumps, filters, and conveying parameters.
Plastic pellet conveying generates static electricity through friction between materials and pipeline walls. Excessive static can increase friction, cause pellets to stick to pipe surfaces, and reduce conveying efficiency. Proper grounding of pipelines and equipment, along with static control devices when required, helps maintain stable material flow.
Dust buildup restricts airflow and gradually reduces system capacity. Undersized filters or poor dust management increase pressure drops, forcing vacuum equipment to work harder. Adequate filtration area and automatic filter cleaning systems, such as compressed air blowback, are essential for maintaining consistent conveying performance.
System capacity depends not only on mechanical design but also on control logic. Poor PLC programming can create material shortages by prioritizing the wrong machines or inefficiently managing demand. Advanced control strategies with priority scheduling and load balancing help maximize existing system capacity without major hardware upgrades.
Vendor calculations must be independently verified before approval. Review assumptions such as resin bulk density, regrind ratios, conveying distance, and equivalent pipe length to ensure the system design matches real operating conditions. Missing pressure drop analysis, underestimated vacuum receiver capacity, or simplified layout calculations are warning signs of potential performance issues.
Require supporting engineering data, including pressure loss calculations, airflow analysis, and CFD or simulation results where applicable. These validations demonstrate that the pipeline design, vacuum capacity, and material flow performance can meet actual production demands before installation.
A well-designed network must adapt to future growth. Evaluate how easily the proposed Centralized Feeding System can integrate additional vacuum pumps, material manifolds, or processing machines. You should be able to expand the system without requiring a complete overhaul of the existing pipe network.
Assess the availability of Variable Frequency Drives (VFDs) on the main vacuum pumps. VFDs allow the system to dynamically adjust its capacity based on real-time plant demand. During low-production shifts, the pumps slow down, saving massive amounts of energy. During peak demand, they ramp up to ensure no machines starve. A scalable system with intelligent VFD controls offers the capacity to handle peak loads and the efficiency to run economically during normal operations.
Conduct a comprehensive audit of your current and projected peak material consumption rates across all machines to establish a true baseline.
Map out precise plant dimensions to calculate accurate equivalent lengths, documenting every vertical lift, elbow, and diverter valve.
Define your material bulk densities rigorously, accounting for the worst-case scenarios involving high regrind percentages and irregular particle shapes.
Establish strict energy efficiency targets (kWh/kg) and demand CFD simulation data from vendors before issuing a Request for Proposal (RFP).
A: Pneumatic conveying capacity relies on the mass flow rate equation. You calculate it by multiplying the air velocity, the pipe cross-sectional area, and the solid-loading ratio. This determines how much material moves through the line per hour. Always factor in material bulk density to ensure accurate volumetric flow.
A: Bulk density directly dictates the volumetric flow required to meet your target mass throughput. Lighter materials require significantly more volume to achieve the same weight throughput. This necessitates larger pipes, bigger vacuum receivers, and higher airflow to prevent blockages and maintain consistent delivery rates.
A: Introducing regrind lowers the overall bulk density of your material blend. It also introduces irregular particle shapes that increase internal friction. This combination requires higher air velocities to keep the material suspended and prevent plugging, which effectively reduces the maximum capacity of your existing pipe network.
A: Equivalent length is a metric used to calculate total system resistance. It combines the actual linear pipe distance with the added frictional resistance of vertical drops, elbows, diverters, and valves. Each bend is assigned a straight-pipe equivalent value, usually expressed in feet or meters, to accurately size vacuum pumps.
A: Machine starvation usually stems from underestimated peak demand during simultaneous loading cycles. Other common culprits include clogged central filters causing severe pressure drops, static electricity build-up restricting flow, or inadequate vacuum pump sizing that fails to maintain the necessary saltation velocity.
A: Pipe elbows introduce significant pressure drops and air turbulence into the conveying line. Each elbow effectively adds 10 to 20 feet of equivalent straight pipe resistance to the system. This increased friction reduces the overall conveying capacity and requires more blower power to overcome the resistance.
