Decentralized material handling creates a hard operational ceiling for high-volume plastics manufacturing. Manual loading, machine-side clutter, and inconsistent material conditioning directly limit production scalability. Operating dozens of injection molding machines independently compounds hidden costs. Material spillage happens daily. Cross-contamination ruins entire production runs. Labor inefficiencies tie up operators. Floor space bottlenecks prevent facility expansion.
You cannot scale efficiently when operators constantly move gaylords and clean hoppers. Upgrading to a centralized feeding system for injection molding solves these core business problems. This strategic infrastructure upgrade shifts focus from individual machine optimization to holistic plant material flow. It removes bulk resin from the production floor. It automates drying, blending, and conveying. To specify a system correctly, you must evaluate specific technical criteria. You need to understand throughput demands, facility constraints, and material characteristics.
Operational Efficiency: Transitioning to a centralized feeding system typically reduces material waste by 2–5% and reallocates direct labor from material handling to high-value quality control tasks.
System Sizing is Critical: Successful implementation requires precise calculation of maximum throughput (lbs/hr), conveying distances, and material bulk densities to prevent pipeline clogging or material degradation.
Risk vs. Reward: While initial CapEx is significant, standardizing drying, blending, and conveying centrally reduces overall energy consumption and machine-side maintenance, driving a verifiable ROI timeline.
Safety and Compliance: Centralizing material flow drastically reduces forklift traffic on the production floor, mitigates ergonomic injuries from manual lifting, and improves air quality by isolating resin dust.
Implementation Reality: Phased installation and meticulous pipe routing are mandatory to prevent production downtime and mitigate risks like "angel hair" formation or cross-contamination.
Table of Contents
Forklift traffic on the production floor creates massive safety liabilities. A 10,000-pound forklift navigating tight aisles between active presses puts operators at constant risk. Moving heavy gaylords introduces severe OSHA compliance issues. Operators face ergonomic strain from repeatedly lifting 50-pound bags of resin or manually scooping material into machine hoppers. Tearing bags open releases airborne resin dust. This dust settles on molds, creates slipping hazards on smooth concrete floors, and degrades indoor air quality.
Decentralized handling also ruins final part quality. Machine-side drying and blending lack consistency. Small hopper dryers often fail to maintain precise dew points, especially during humid summer months. This leads to moisture-related defects like splay, voids, or brittle parts. Manual blending at the machine causes severe color variations. Operators frequently miscalculate masterbatch ratios or forget to add regrind. A Centralized Feeding System eliminates these variables. It ensures every machine receives perfectly conditioned, accurately blended material.
To identify if your plant has reached the breaking point of decentralized handling, conduct a rapid bottleneck audit:
Track the number of forklift trips per shift dedicated solely to moving raw resin.
Calculate the square footage consumed by machine-side gaylords, pallets, and portable dryers.
Log the frequency of moisture-related defects and color-match failures over a 30-day period.
Measure the exact downtime operators spend manually cleaning hoppers during material changeovers.
Manufacturing floor space holds immense value. Individual hoppers, machine-side dryers, and material staging areas consume expensive square footage. You pay a premium to store raw plastic next to active presses. A standard 4x4 gaylord, a portable dryer, and the required clearance space can easily consume 40 square feet per machine. Across 20 machines, that is 800 square feet of wasted primary production space. This clutter prevents you from adding new machines to your existing layout.
Centralizing your material flow reclaims this real estate. You move bulk storage, drying, and blending to peripheral areas, dedicated material rooms, or structural mezzanines. This strategy proves especially valuable in cleanroom environments. Removing gaylords and cardboard from the cleanroom instantly reduces particulate counts. Cardboard sheds fibers constantly, and wooden pallets harbor moisture. Keeping these items in a peripheral warehouse minimizes contamination and frees up high-value space for revenue-generating production equipment.

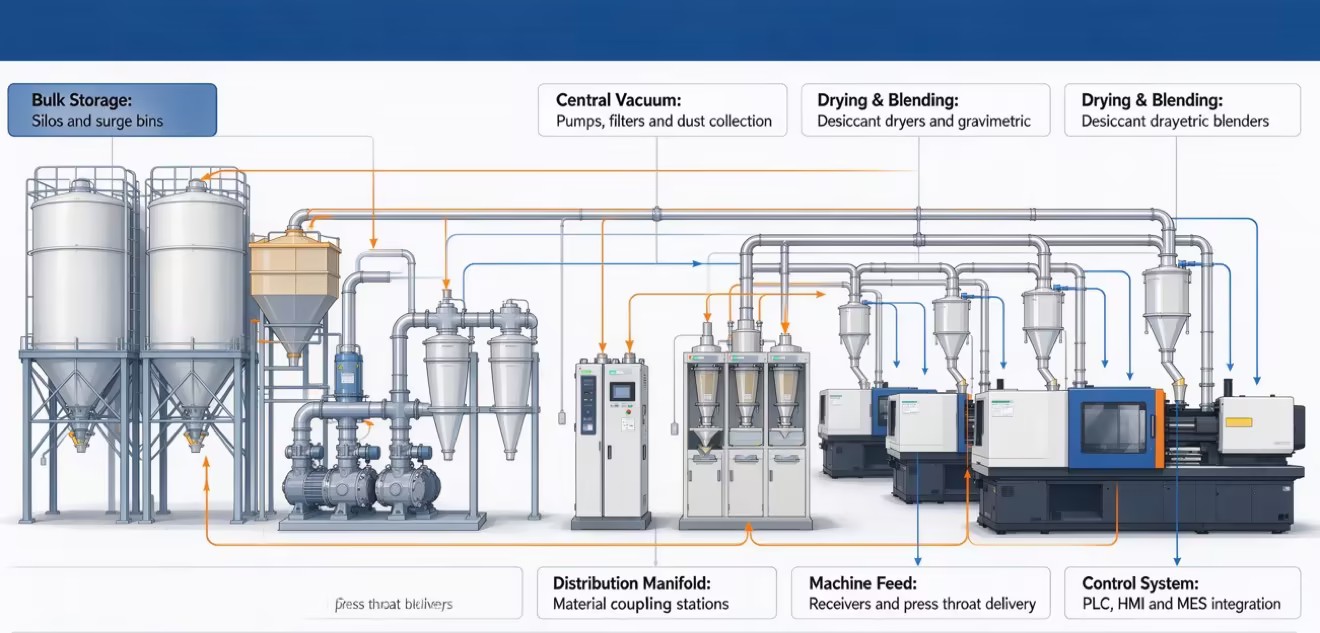

Centralized systems rely on bulk silos, surge bins, and automated coupling stations to manage material storage and distribution. RFID-enabled manifolds reduce changeover errors by verifying material connections and preventing incorrect resin delivery, improving production reliability and reducing contamination risks.
Vacuum conveying systems transport plastic pellets through dedicated pipelines using central vacuum pumps. Rotary lobe blowers, dust collectors, and properly designed conveying lines ensure stable material flow over long distances while protecting equipment from fines and contamination.
Conveying Type |
Velocity |
Material State |
Best Application |
|---|---|---|---|
Dilute-Phase |
High (4,000 - 6,000 ft/min) |
Suspended in air stream |
Standard commodity resins (PP, PE, ABS) |
Dense-Phase |
Low (400 - 1,000 ft/min) |
Moving in heavy slugs |
Highly abrasive or fragile materials (Glass-filled Nylon, Acrylic) |
Centralized drying and blending systems ensure consistent resin quality by controlling moisture levels and material ratios. Desiccant dryers remove moisture before processing, while gravimetric blenders accurately mix virgin resin, regrind, and additives. Closed-loop dry air conveying prevents moisture absorption during transport and maintains stable molding performance.
Automated regrind recovery systems improve material utilization by returning production scrap directly to the blending process. Granulators process runners and sprues, while proportional valves control virgin resin and regrind ratios automatically. This reduces manual handling, minimizes waste, and maintains consistent part quality.
System sizing depends on accurate material demand calculations and conveying distance. Peak resin consumption, future expansion margins, and equivalent pipe length must be considered when selecting vacuum pump capacity. Long pipelines, vertical lifts, and multiple bends increase resistance and require higher-capacity conveying systems.
Material properties determine pipe and filtration requirements. Abrasive resins require wear-resistant piping such as stainless steel or specialized elbow liners, while dusty regrind materials need advanced filtration and dust collection systems. Proper hardware selection prevents pipeline damage, pump contamination, and conveying performance loss.
Medical molding applications require strict contamination control. Centralized systems should use stainless steel material-contact surfaces, filtered exhaust systems, and sealed material delivery paths. Separating bulk storage and drying equipment from the cleanroom helps reduce contamination risks and maintain ISO cleanroom standards.
Modern material handling systems rely on centralized PLC and HMI controls for monitoring, automation, and fault management. Integration with MES or ERP systems enables real-time material consumption tracking, inventory management, and improved production visibility.
Centralized material handling systems require higher initial investment but reduce long-term operating costs. They lower labor requirements, reduce material waste, and enable bulk resin purchasing. Energy savings are also achieved through efficient VFD-controlled vacuum systems that adjust power consumption based on actual demand.
System design requires balancing current needs with future expansion. Oversized piping mains and manifolds increase upfront costs but simplify future machine additions. A modular approach allows plants to prepare infrastructure for growth while avoiding unnecessary investment in oversized pumps and equipment.
Blending location impacts accuracy and material segregation. You can blend centrally and convey the mixed batch, or convey raw materials to machine-side blenders. Each approach carries specific trade-offs.
Feature |
Centralized Blending |
Machine-Side Blending |
|---|---|---|
Equipment Cost |
Lower (Fewer, larger blenders required) |
Higher (One blender needed per machine) |
Maintenance |
Centralized, easier to access at ground level |
Decentralized, requires climbing on presses |
Segregation Risk |
High (Vibration in pipes can separate mix) |
Low (Blended directly above the feed throat) |
Changeover Time |
Longer (Must purge entire conveying line) |
Shorter (Only purge the machine-side hopper) |
Central blending works best for dedicated lines running the same material constantly. Machine-side blending works best for custom molders executing frequent color or material changeovers. Conveying a pre-blended mix over long distances risks material segregation. Heavy virgin pellets travel differently than light regrind or dense colorant pellets, potentially un-mixing the batch before it reaches the press.
A centralized feeding system is a necessary infrastructure investment for injection molding plants scaling beyond 10 to 15 machines. Facilities processing high volumes of engineered resins cannot survive on decentralized manual labor. The reduction in material waste, the elimination of forklift hazards, and the stabilization of part quality justify the investment. When shortlisting vendors, evaluate their engineering support, their ability to conduct accurate site audits, and the strength of their Service Level Agreements regarding domestic spare parts availability.
Initiate a comprehensive material flow audit to identify your exact throughput bottlenecks and equivalent pipe lengths.
Calculate your current scrap rates and direct labor costs tied specifically to manual material handling.
Map out a preliminary 2D or 3D plant layout detailing outdoor silo locations and indoor pump room availability.
Audit your existing resins to identify abrasive or hygroscopic materials requiring specialized stainless steel piping or closed-loop drying.
A: It typically reclaims 15% to 25% of your primary production floor. By moving bulk gaylords, portable dryers, and blenders to a dedicated material room, you free up space to install additional injection molding machines within your existing footprint.
A: Yes, but it requires specialized hardware. You must use stainless steel piping instead of aluminum. Directional changes require ceramic-lined elbows or specialized glass-backed bends to prevent the abrasive pellets from wearing holes through the pipe walls.
A: Dilute-phase uses high-velocity air to suspend and pull pellets rapidly through the pipe. Dense-phase uses low-velocity, high-pressure air to push heavy slugs of material slowly. Dense-phase minimizes pipe wear and prevents fragile pellets from shattering.
A: You must use closed-loop dry air conveying. Instead of pulling ambient, humid plant air to move the pellets, the system routes the ultra-dry air from the desiccant dryer into the conveying line. This keeps hygroscopic materials perfectly dry during transit.
A: Angel hair forms when soft plastic pellets skid against smooth pipe walls at high speeds. The friction melts the pellet surface, leaving a smear of plastic that cools into a long string. Shot-peened piping and lower conveying velocities prevent this.
A: No. Experienced contractors use phased rollouts. They install the overhead pipe racks, vacuum pumps, and silos while your current machine-side loaders keep production running. Final connections happen during scheduled weekend cutovers, one machine cell at a time.
